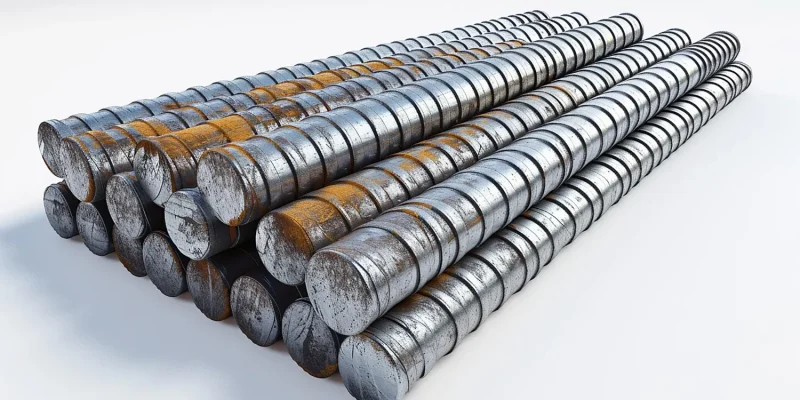

The Inconel Round Bar & Rod from Icon Steel are purpose-built for high-stress, cold-sensitive industries that require a material with extremely strong but corrosive qualities designed to withstand the harshest environment.
Comprising of high-quality Inconel alloys, these bars and rods offer outstanding oxidation resistance and chemical corrosion, paired with superior mechanical properties. It is suitable for use in aerospace, marine, chemical processing and power generation applications where reliability and resistance to wear are essential.
Key Features
Specification
| Specification | Details |
|---|---|
| Material Composition | Nickel (58-72%), Chromium (14-23%), Iron (3-5%), with trace amounts of Molybdenum, Aluminum, and Titanium |
| Yield Strength | 414 MPa |
| Tensile Strength | 827 MPa |
| Elongation | 30% |
| Corrosion Resistance | Outstanding in harsh chemical and marine environments |
| Thickness Range | 5 mm to 200 mm |
| Length | Up to 6 meters or customizable as per requirement |
| Standards Compliance | ASTM B446, ASME SB-446, ISO 6208 |
| Surface Finishes | Hot Rolled, Cold Drawn, Polished, and Custom finishes |
| Available Coatings | Aluminide, Ceramic, and Custom Coatings |
| Operating Temperature Range | -196°C to 982°C |
Chemical Properties
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | 58-72 |
| Chromium (Cr) | 14-23 |
| Iron (Fe) | 3-5 |
| Molybdenum (Mo) | 2-3 |
| Aluminum (Al) | 0.4-1.5 |
| Titanium (Ti) | 0.4-1.2 |
| Carbon (C) | ≤ 0.08 |
| Silicon (Si) | ≤ 0.5 |
| Manganese (Mn) | ≤ 1.0 |
Mechanical Properties
| Mechanical Property | Value |
|---|---|
| Tensile Strength | 827 MPa |
| Yield Strength | 414 MPa |
| Elongation at Break | 30% |
| Hardness | Rockwell B88 |
| Impact Strength | 110 J |
Dive into our comprehensive product gallery to see the wide range of stainless steel products we offer. Each product is designed to meet the highest standards and cater to various applications across different industries. Below, you will find images and brief descriptions of each product category to help you choose the right one for your project.
Call expert
+971 55 309 9915
Write email
info@iconsteel.ae
Visit office
Burjuman Business Tower BT 20-10, Khalid Bin Walid Road, Dubai, UAE
Inconel Round Bar & Rod Applications in Industrial
Aerospace Industry
used in turbine blades, exhaust systems and fasteners demanding high strenghts and hig temperature resistance.For use with marine hardware and fasteners, as well as underwater footings In applications where exposed to corrosive saltwater Protects your marine grade products from corrosion prolonging life of product
Power Generation
Inconel Sheets have applications in the power generation industry. Specifically, manufacturers can utilize Inconel Sheets in gas turbine components and nuclear reactors because these sheets have high thermal and mechanical stability.
Chemical Processing
Used in Reactor Vessels, high pressure Heat Exchangers and piping system to withstand aggressive chemicals along with High temperature.
FAQ
It is a nickel-based steel alloy and offers vivacious resistance to sluggish warmth, making it be as wire by the use of handy useful resource adequately beyond 982 ā°C.
Yes, the Inconel Round Bar & Rod of Icon Steel are customizable to select thickness, diameter and length in accordance with your project needs.
They have used the Inconel alloy in these bars and rods because it shows powerful corrosion resistance especially against harsh chemicals, attack from marine conditions that will help them to be useful for all kind of such applications.
At Icon Steel, we are able to provide a variety of surface finishes that extend beyond the simple hot-rolled south-of-the-border options like cold-drawn and polished. These include a range of protective coatings, such as aluminide and ceramic, designed to improve performance under specific conditions.
